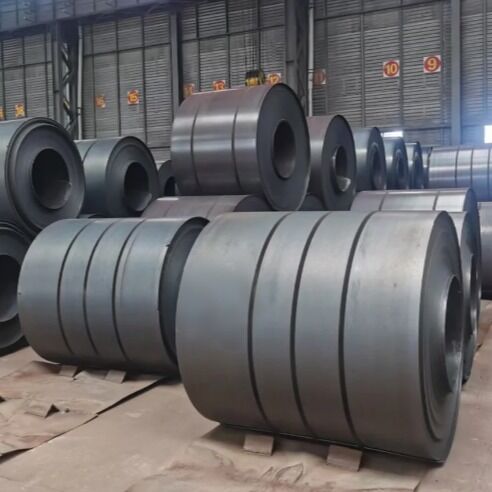

SUS304 1.4301 Stainless Steel Coils , 2.68 - 12mm Thick Rolled Steel Coil
Finish: No.1/ 1D
Thickness: 2.5-12mm
304 SUS304 1.4301 hot rolled stainless steel coils 2.68-12mm
Product description:
Grade: 304/304L, SUS304/SUS304L,1.4301/1.4307
Thicknes:2.68-12.0mm
Thickness tolerance: upon customer requirment
Width: 600/620/650/680/700/730mm,1000/1219/1250/1500/1524mm
Edge: mill edge or slit edge
Coil ID:610MM/508MM
Coil weight: 600-730mm width 9-12mt, 1000-1550mm 18-25mt
Mill origin: Tsingshan(Guangqing,Qingtuo), Delong
Comparision among grade 304 302 304L
304 Stainless is a low carbon (0.08% max) version of basic 18-8 also known as 302. Type 302 has 18% chromium and 8% nickel. Type 304 has slightly lower strength than 302 due to its lower carbon content. Type 304 finds extensive use in welding applications because the low carbon permits some exposure in the carbide precipitation range of 800 - 1500 without the need for post-annealing operations. However, the severity of corrosive environments may necessitate annealing after welding or the use of 304L.
Type 304L has a carbon content of 0.03% or less. This alloy can be used in the as-welded condition without becoming susceptible to intergranular corrosion.
Chemical composition
| Standard | Grade | C(max) | Si(Max) | Mn(max) | P(Max) | S(Max) | N(max) | Ni | Cr |
| JIS | SUS304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | - | 8.00-10.50 | 18.00-20.00 |
| ASTM | S30400 | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 0.10 | 8.00-10.50 | 18.00-20.00 |
| EN | 1.4301 | 0.07 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 8.00-10.50 | 17.00-19.50 |
Mechanical Characteristics
| Material | Yield Strength | Tensile Strength | Elongation | Hardness | Flexibility | |
| YS0.2(Kg/mm2) | TS(Kg/mm2) | EL(%) | HRB | HV10 | 180° | |
| Solution | 28 | 63 | 58 | 83 | 166 | 0 |
