Anti Noise Stainless Exhaust Flex Pipe , Durable Flexible Automotive Exhaust Pipe

Name: Anti Noise Stainless Exhaust Flex Pipe , Durable Flexible Automotive Exhaust Pipe
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: 304 321 309S 316Ti 201 202 430 439 444
Availability: InStock

Brand Name:	Connect
Model Number:	304 321 309S 316Ti 201 202 430 439 444
MOQ:	negotiation
Price:	negotiation
Delivery Time:	15-45dd
Payment Terms:	by irrevocable L/C at sight or by T/T in advance

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TS ISO

Description:

Auto Exhaust Flexible Pipe With Interlock（outer Wire Meshed）

Material:

304 321 309S 316Ti 201 202 430 439 444

ID:

304 321 309S 316Ti 201 202 430 439 444

Overall Length:

51mm~356mm

Shipping Terms:

FOB CIF CFR Etc

Package:

Carton Box

Application:

Pentium B50, Lavida, Golf, Mazda 6

Packaging Details:

Carton box + pallet

Supply Ability:

100,000pcs/m

Highlight:

stainless steel flex pipe exhaust

flexible automotive exhaust pipe

Product Description

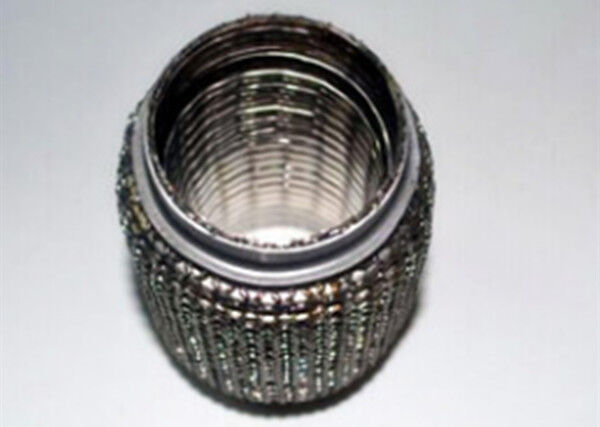

Auto exhaust flexible pipe with interlock(Outer wire meshed) for auto exhaust systems

Simple introduction for auto exhaust flexible pipe with interlock(outer wire meshed)

Auto exhaust flexible pipe with interlock(outer wire braided) is composed by outer wire braid, double layer bellows and interlock, which has added interlock inside based on routine products, as it’s used for assembly and maintenance for middle-high oriented cars, outer wire braided is divided into routine braid and woven mesh, the structure of products are more strength due to the add of interlock inside, there’s evident effect in terms of damping and reduction of noise. It’s belong to high level series products among auto exhaust flexible pipes.

Function of interlock

1. Absorption compensation axial, lateral, angular deformation.

2. Absorption vibration of equipment, reduce equipment vibration.

3. Absorption of certain deformation.

Available Materials

Materials	Bellows	Stainless steel 304 321 309S 316Ti 201 202 430 439 444
	Inner Braid
	Interlock
	Outer braid
	Caps	Aluminized steel or stainless steel 201 202 304 409L etc
	Nipples

ROUTINE SIZE

Inner Diameter(ID)		Length(L)		Inner Diameter(ID)		Length(L)
Inch	mm	Inch	mm	Inch	mm	Inch	mm
1-3/4"	45	4"	102	2-1/4"	57.2	4"	102
		6"	152			6"	152
		7"	178			8"	203
		8"	203			9"	230
		9"	230			10"	254
		10"	254			11"	280
		11"	280			12"	305
		12"	305			-	-
Inner Diameter(ID)		Length(L)		Inner Diameter(ID)		Length(L)
Inch	mm	Inch	mm	Inch	mm	Inch	mm
2"	50.8	4"	102	2-1/2"	63.5	4"	102
		6"	152			6"	152
		8"	203			8"	203
		9"	230			9"	230
		10"	254			10"	254
		11"	280			11"	280
		12"	305			12"	305
3"	76.2	4"	102
		6"	152
		8"	203
		10"	254
		12"	305
