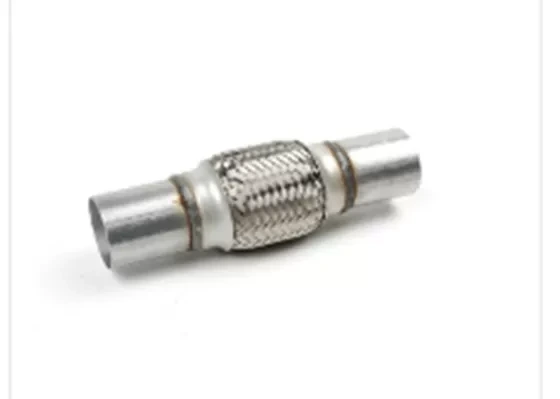

SS321 Material 4 Inch Exhaust Flex Pipe , 76 X 250mm Exhaust Mesh Flex Pipe

76X250mm Auto exhaust flexible pipe with nipple extension(without inner liner) for auto exhaust systems

STRUCTURE
Interlock flex pipe:bellows +outer braid +nipples

Quick detail:
Material of Bellows: Stainless steel 309S

Material of Inner braid:Stainless steel 304 321 309S
Material of Outer Braid:Stainless steel 304 321 309S
Material ofNipples: Aluminized steel or stainless steel 409L

Length:120mm

Diameter:45mm

Application: for all exhaust pipe with Diamter 45mm

OTHER ROUTINE SIZE AVAIABLE

Iner Diameter(inch): 1-3/4",2",2-1/4",2/1/2",3"

Inner Diameter(mm):45mm 48mm 50.8mm 54mm 57.2mm 63.5mm 76.20mm

Flexible Length(inch):4",6",8",10"

Flexible Length(mm):102mm 152mm 203mm 254mm

Overall Length(inch):8",10",12",14"

Overall Length(mm):203mm,254mm,305mm,356mm

Quality assurance:

1. Assurance of raw materials.

All the raw materials we purchased are from local major mill, such as POSCO, BAOSTEEL AND TISCO etc. Compared with our competitors who sourced raw materials from small mill, our products have better appearance and more stable mechanical properties ,moreover the lifetime would last 3-5 years more long than the usual ones.

2. Welding procedure

• welding process has strict production process and operation guide book
• welding consistent, smooth, neat
• welding products without sand holes, porosity ,ensure that no leakage.
