Cold Rolled Stainless Steel Sheet
Created with Pixso. Cold Rolled Hairline Stainless Steel Sheet , 300 Series Stainless Steel Panels

Cold Rolled Hairline Stainless Steel Sheet , 300 Series Stainless Steel Panels

Brand Name: JUYE
Model Number: Polished Surface HL
MOQ: negotiation
Price: negotiation
Delivery Time: 3-8 weeks
Payment Terms: be negotiatable
Detail Information
Place of Origin:
China
Certification:
ISO
Grade:
301, 304,316L,316L,309S,310S
Finish:
HL
Custommerized Size:
Width 100-1500mm, Length 500-6500mm
Normal Size:
1000*2000mm, 1219*2438mm,1219mm*3048mm
Thickness:
0.3-3.0mm

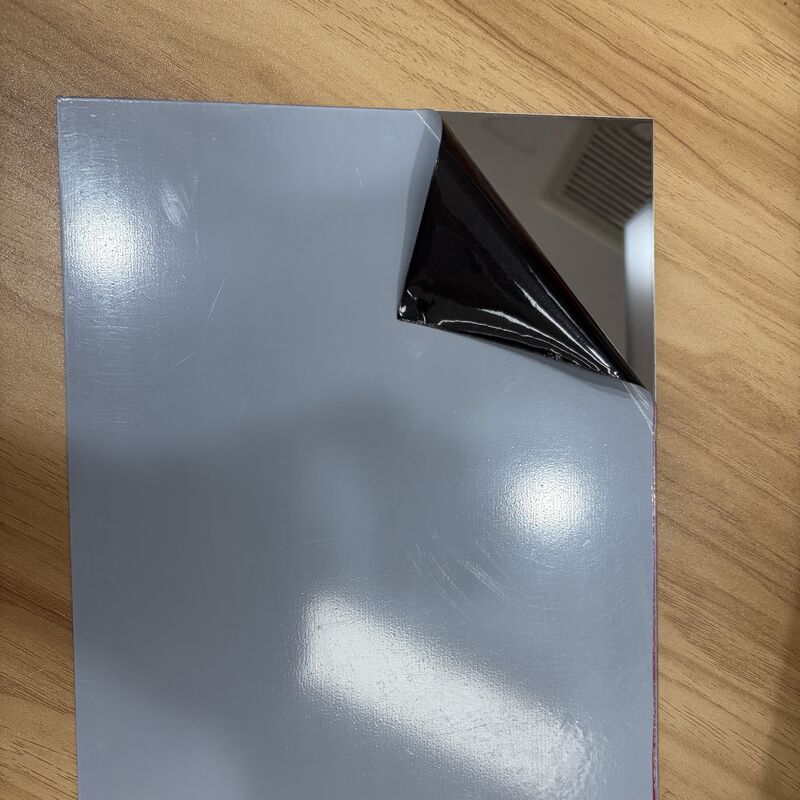

Surface Protection:
PVC Or PE Film, Paper, Anti- Fingerprint, Oil- Repellent
Packaging Details:
standard export packing
Supply Ability:
2000mt /month
Highlight:

stainless steel cold rolled sheet

,

mirror polished stainless steel sheet

Product Description

300 Series Cold Rolled Stainless Steel Hairline Sheet 0.3-3.0mm



Main Specification:



Description Cold Rolled Stainless Steel Sheet
Series 300Series
Grade 301 304 316L 309 310S etc
Thickness 0.3-3.0mm
Finish HL
Normal Size 1000*2000mm,1219x3048mm,1219x2438mm,1219x3500mm
Standard JIS ASTM EN
Grade Prime
Country of Origin made in China
Payment terms by T/T or L/C
Packaging Seaworthy standard export package with pallet
Shipping date 15-45dd
Shipping terms FOB CFR CIF etc.





1. Surface Definition:

HL(hair line): Polished with abrasive belt of grit#150-#320 on the No.4 finish and has continuous streaks, mainly used as building's ornaments,elevators,door of building,frontal plate etc.



2. Polishing Machine

1) Oil polishing machine for whole coils ( single side face or two sides face)

2) Dry polishing machine for cut to length sheet ( single side face or two sides face)





3. Main applications:

Home appliance outside surface

Elevator panel

Handrail surface

Kitchenwares



Cold Rolled Hairline Stainless Steel Sheet , 300 Series Stainless Steel Panels 0

Reference Table :

Grade Main Chemical Composition %
C Si Mn P S Ni Cr Mo
SUS301L 0.03 1.00 2.00 0.045 0.03 6.00~8.00 16.00~18.00
SUS304 0.08 1.00 2.00 0.045 0.03 8.00~10.50 18.00~20.00
SUS304J1 0.08 1.70 3.00 0.045 0.03 6.00~9.00 15.00~18.00
304L 0.03 0.75 2.00 0.045 0.03 8.00~12.00 18.00~20.00
SUS304L 0.03 1.00 2.00 0.045 0.03 9.00~13.00 18.00~20.00
309S 0.08 1.00 2.00 0.045 0.03 12.00~15.00 22.00~24.00
310S 0.08 1.50 2.00 0.045 0.03 19.00~22.00 24.00~26.00
SUS316 0.08 0.75 2.00 0.045 0.03 10.00~14.00 16.00~18.00 2.00~3.00
SUS316L 0.03 1.00 2.00 0.045 0.03 12.00~15.00 16.00~18.00 2.00~3.00
316L 0.03 0.75 2.00 0.045 0.03 10.00~14.00 16.00~18.00 2.00~3.00
SUS317L 0.03 1.00 2.00 0.045 0.03 11.00~15.00 18.00~20.00 3.00~4.00




FAQ:

Q: How about the delivery time?
A: Generally it takes 15-35 days to make shipment after definition of P.O. and receipt of down payment or L/C.



Q:Whats your shipping terms?
A:,FOB,CFR,CIF would be preferred. In case of payment L/C, we accept CIF/CFR only.

Q:How about your payment terms?
A: As general rule. by T/T, 20% down payment after PO, the balance before shipment. Or full payment by irrevocable L/C at sight.



Q: Could you provide with sample free?
A: YES.We could. but airfreight for samples would at customers charge.



Q:How about MOQ?
A:It depends. Generally we suggest the MOQ is 1x20ft for easy shipment arrangement.but small trail order will be accepted.



Q: Which is your main overseas market?
A: our main markets is Korea, South East Asia, Middle East , North America, Russia, West Europe, South America,etc.


Q Can we pay a visit to factory before placement of order?
A: Certainly! You are warmly welcome to our factory at your convenience!
