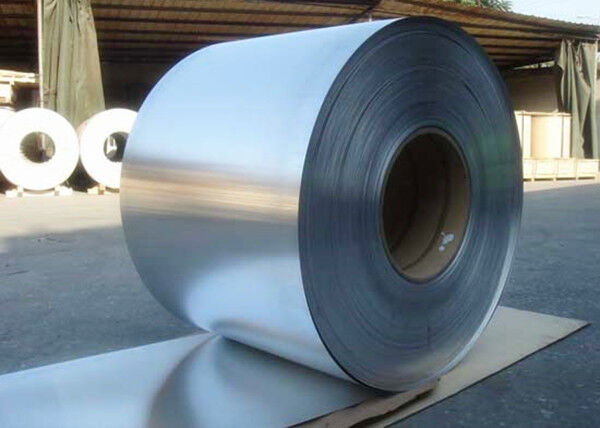

Industrial SUS430 Coil Sheet , Smooth Bright Surface Stainless Steel Strip Roll

Name: Industrial SUS430 Coil Sheet , Smooth Bright Surface Stainless Steel Strip Roll
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: SUS430 1.4016 S43000
Availability: InStock

Brand Name:	JISCO BAOSTEEL YONGJIN
Model Number:	SUS430 1.4016 S43000
MOQ:	negotiation
Price:	negotiation
Delivery Time:	4-6 weeks
Payment Terms:	Full payment by L/C irrevocable at sight

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA MAIDLAND

Certification:

ISO ASME PED

Thickness:

0.3-3.0mm

Width:

1000-1550

Edge:

Slit Edge Or Mill Edge

Standard:

JIS EN ASTM AISI

Finish:

2B BA No.3 No.4 HL PE/PVC

Width Tolerance For Mill Edge:

+/-15mm

Shipping Terms:

CFR FOB CIF EXW

Packaging Details:

Export packaging with pallets

Supply Ability:

2000T

Highlight:

stainless steel cold rolled coils

430 series stainless steel

Product Description

SUS430 1.4016 S43000 cold rolled 430 stainless steel coils 0.3-3.0mm

Quick detail:

Description	430 stainless steel sheet in coils/430 Cold rolled stainless steel coils/CR stainless steel sheet in coils
Grade	SUS430 1.4016 S43000
Thickness	0.3-3.0mm
Finish	2B BA No.3 No.4 HL PE/PVC
Width	1000-1550mm
Standard	JIS EN ASTM AISI
Coil ID	508/610mm
Thickness tolerance	to be defined with customers
Q'ty tolerance	+/-10% on order quantity
Paper Interleaved	Yes
Country of Origin	made in China
Packaging	Seaworthy standard export package with pallet:
	·Paper interleaved
	·Horizontal straps+vertical straps
	·External metal or cardboad protection
	·Pallet is including

CHEMICAL COMPOSITION&Mechanical properties

STANDARD	GRADE	CHEMICAL COMPOSITION(%)
STANDARD	GRADE	C max	Si max	Mn max	P max	S max	Ni	Cr
JIS	SUS430*	0.12	0.75	1.00	0.040	0.030	-	16.00~18.00
GB	1Cr17	0.12	1.0	1.00	0.040	0.030	0.75	16.00~18.00
ASTM	S43000*	0.12	1.0	1.00	0.040	0.030	0.75	16.00~18.00
EN	1.4016	0.08	1.0	1.00	0.040	0.015	-	16.00~18.00
Mechanical properties
Yield Strength		Tensile Strength		Elongation		Hardness
(N/mm2)		(N/mm2)		(%)		HRB	HV
≥205		≥420		≥22		≤80	≤200
