3.0 - 16mm Thick 304l Stainless Steel Coil , Hot Rolled Steel Sheet Roll
Width: 1000-1600mm
Thickness: 3.0mm~16mm
Grade 304L No.1 hot rolled stainless steel coil and strip 3.0-16mm
GENERAL PROPERTIES
The 18-8 stainless steels, alloy 304 and 304L,are the most familiar and most frequently used alloy in the stainless family.They are available in a wide range of product forms such as sheet,strip and plate.
DESCRIPTION:
- Thickness:3.0-16mm
- Finish: No.1
- Width:1000-1600mm
- Standard: JIS EN ASTM ASME
- Coil ID: 610mm
- Coil weight: 15-25T
- Paper Interleaved: Yes
- Edge: MILL edge
Chemical composition for 304L
The typical chemical composition of 304L are listed in the following table. Among standard of GB,ASTM AND EN, the range of the chemical compostion of 304L has a slightly different. see here below:
| STANDARD | GRADE | CHEMICAL COMPOSITION | |||||||
| C max | Si max | Mn max | P max | S max | N max | Ni | Cr | ||
| GB/T4237 | 022Cr19Ni10 | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 0.10 | 8.00~12.00 | 18.00~20.00 |
| ASTM A240 | 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 0.10 | 8.00~12.00 | 17.50~19.50 |
| EN10088 | 1.4307 | 0.03 | 1.00 | 2.00 | 0.045 | 0.015 | 0.11 | 8.00~12.00 | 17.50~19.50 |
Mechanical Characteristics
Among the Standards of GB,ASTM and EN,the range of mechanical properties has a slightly different, see here below the table:
| Standard | GRADE | Yield Strength | Tensile Strength | Elongation | Hardness |
| (N/mm2) | (N/mm2) | (%) | HRB | ||
| GB/T4237 | 022Cr19Ni10 | 485 | 170 | 40 | 92 |
| ASTM A240 | 304L | 485 | 170 | 40 | 92 |
| EN10088 | 1.4307 | 520-700 | 200 | 45 | 92 |

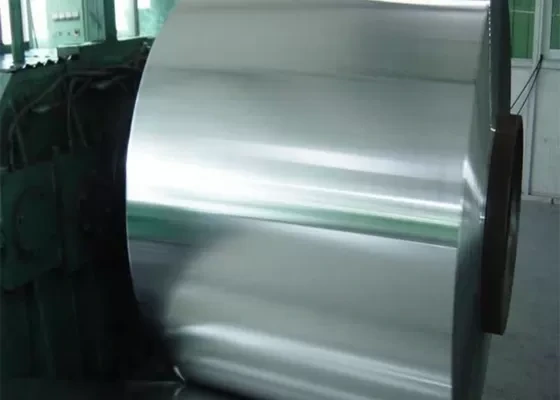

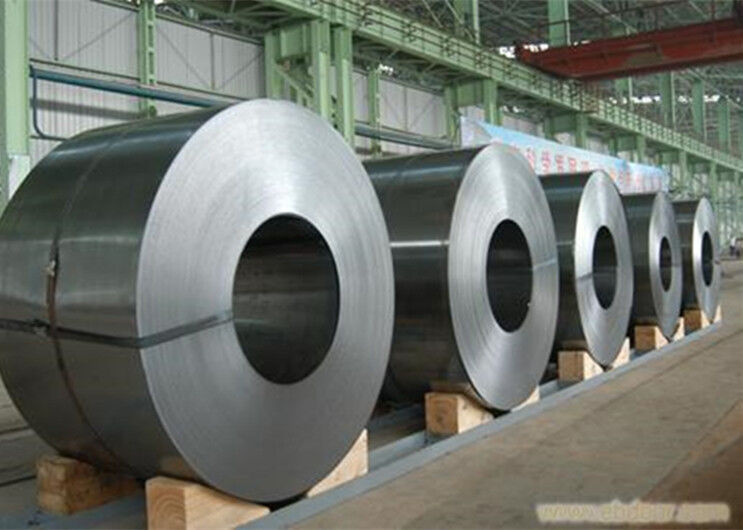

Products show
FAQ:
Q: How about the delivery time?
A: Generally it takes 15-35 days to make shipment after definition of P.O. and receipt of down payment or L/C.
Q:What’s your shipping terms?
A:,FOB,CFR,CIF would be preferred. In case of payment L/C, we accept CIF/CFR only.
Q:How about your payment terms?
A: As general rule. by T/T, 20% down payment after PO, the balance before shipment. Or full payment by irrevocable L/C at sight.
Q: Could you provide with sample free?
A: YES.We could. but airfreight for samples would at customers charge.
Q:How about MOQ?
A:It depends. Generally we suggest the MOQ is 1x20ft for easy shipment arrangement.but small trail order will be accepted.
Q: Which is your main overseas market?
A: our main markets is Korea, South East Asia, Middle East , North America, Russia, West Europe, South America,etc.
Q Can we pay a visit to factory before placement of order?
A: Certainly! You are warmly welcome to our factory at your convenience!
