300 Series Cold Rolled Stainless Steel Hairline Sheet 0.3-3.0mm
Main Specification:
Description | Cold Rolled Stainless Steel Sheet |
Series | 300Series |
Grade | 301 304 316L 309 310S etc |
Thickness | 0.3-3.0mm |
Finish | HL |
Normal Size | 1000*2000mm,1219x3048mm,1219x2438mm,1219x3500mm |
Standard | JIS ASTM EN |
Grade | Prime |
Country of Origin | made in China |
Payment terms | by T/T or L/C |
Packaging | Seaworthy standard export package with pallet |
Shipping date | 15-45dd |
Shipping terms | FOB CFR CIF etc. |
1. Surface Definition:

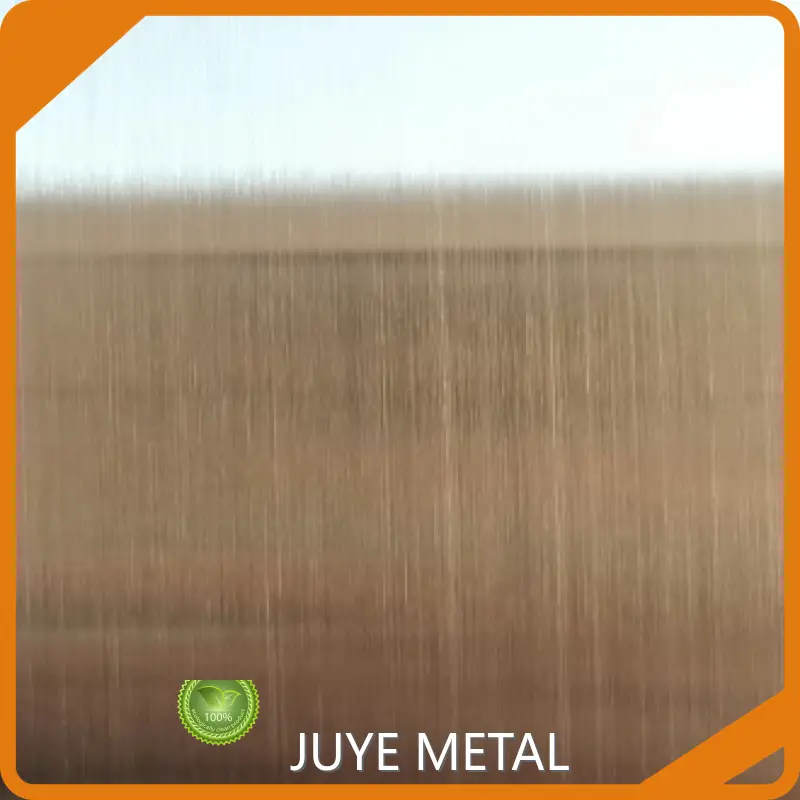

HL(hair line): Polished with abrasive belt of grit#150-#320 on the No.4 finish and has continuous streaks, mainly used as building's ornaments,elevators,door of building,frontal plate etc.
2. Polishing Machine
1) Oil polishing machine for whole coils ( single side face or two sides face)
2) Dry polishing machine for cut to length sheet ( single side face or two sides face)
3. Main applications:
Home appliance outside surface
Elevator panel
Handrail surface
Kitchenwares
Reference Table :
Grade | Main Chemical Composition ï¼… | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | |
SUS301L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 6.00~8.00 | 16.00~18.00 | |
SUS304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00~10.50 | 18.00~20.00 | |
SUS304J1 | 0.08 | 1.70 | 3.00 | 0.045 | 0.03 | 6.00~9.00 | 15.00~18.00 | |
304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00~12.00 | 18.00~20.00 | |
SUS304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00~13.00 | 18.00~20.00 | |
309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00~15.00 | 22.00~24.00 | |
310S | 0.08 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00~22.00 | 24.00~26.00 | |
SUS316 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
SUS316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
SUS317L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 11.00~15.00 | 18.00~20.00 | 3.00~4.00 |
Company Advantages
· 430 stainless steel sheet is produced by safe and environmentally-friendly raw material.
· The product is tested with the vigilance of our skilled professionals who have a clear understanding of the quality standards in the industry.
· Delivery accuracy of Ningbo Juye METAL Technology Co., Ltd. is extremely high!
Company Features
· Ningbo Juye METAL Technology Co., Ltd. is noted for expertise in manufacturing 430 stainless steel sheet and possesses vast experience in delivering high-quality products.
· The factory always maintains a production facility that is environmentally friendly. These facilities, introduced from developed countries, have high efficiency in reducing resources waste and pollution.
· Ningbo Juye METAL Technology Co., Ltd. remains successful by constantly striving to provide greater value to our customers. Ask online!
Application of the Product
The 430 stainless steel sheet developed by JUYE METAL is widely used in industry.
Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.
