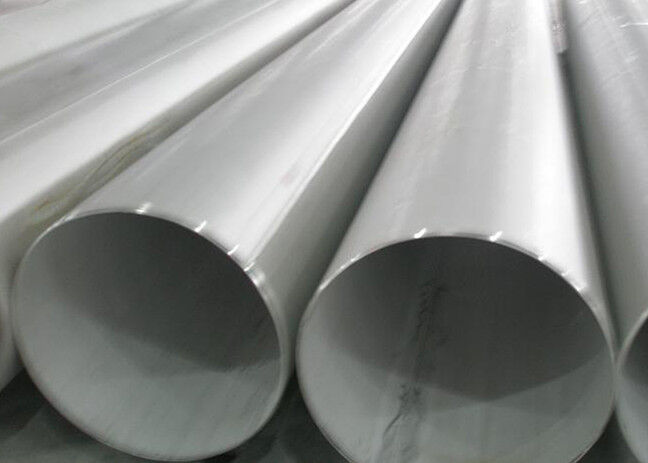

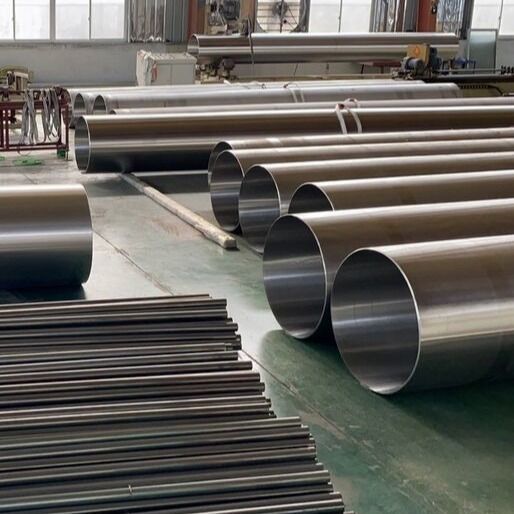

Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube

Name: Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: SUS304 SUS304L SUS316 SUS316L
Availability: InStock

Brand Name:	SINOSTEEL
Model Number:	SUS304 SUS304L SUS316 SUS316L
MOQ:	negotiation
Price:	negotiation
Delivery Time:	4 weeks
Payment Terms:	20% T/T at PO, 80% before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

MADE IN CHINA

Certification:

ISO

Description:

Stainless Steel Welded Pipe

Grade:

SUS304 SUS304L SUS316 SUS316L

Nominal Diameter:

6mm-300mm

Outerside Diameter:

10.50mm-318.50mm

Wall Thickness:

SCH5S SCH10S SCH20S SCH40S

Standard:

JIS G3459

Length:

As Per Request

Application:

For Industrial Pipe

Packaging Details:

Robust package

Supply Ability:

100T

Highlight:

seamless stainless steel tubing

stainless steel welded tube

Product Description

JIS G3459 stainless steel welded pipe SUS304 SUS304L SUS316 SUS316L
Products Range

Nominal Diameter		Outside Diameter	Norminal Wall Thickness(mm)
N.B	NPS	mm	SCH 5S	SCH 10S	SCH 40S
6	1/8	10.29		1.24	1.73
8	1/4	13.72	1.24	1.65	2.24
10	3/8	17.15	1.24	1.65	2.31
15	1/2	21.34	1.65	2.11	2.77
20	3/4	26.67	1.65	2.11	2.87
25	1	33.4	1.65	2.77	3.38
32	1 1/4	42.16	1.65	2.77	3.56
40	1 1/2	48.26	1.65	2.77	3.68
50	2	60.33	1.65	2.77	3.91
65	2 1/2	73.03	2.11	3.05	5.16
80	3	88.9	2.11	3.05	5.49
90	3 1/2	101.6	2.11	3.05	5.74
100	4	114.3	2.11	3.05	6.02
15	5	141.3	2.77	3.4	6.55
150	6	168.28	2.77	3.4	7.11
200	8	219.08	2.77	3.76	8.18
250	10	273.05	3.4	4.19	9.27
300	12	323.85	3.96	4.57	9.53

CHEMICAL COMPOSITION

STANDARD	GRADE	CHEMICAL COMPOSITION(%)
STANDARD	GRADE	C max	Si max	Mn max	P max	S max	Ni	Cr	Mo
JIS	SUS304	0.08	1.00	2.00	0.040	0.030	8.00-11.00	18.00-20.00	-
	SUS304L	0.03	1.00	2.00	0.040	0.030	8.00-13.00	18.00-20.00	-
	SUS316	0.08	1.00	2.00	0.040	0.030	10.00-14.00	16.00-18.00	2.00-3.00
	SUS316L	0.08	1.00	2.00	0.040	0.030	12.00~16.00	16.00~18.00	2.00-3.00

Mechanical Property

ASTM	Grade	Yield Strength	Tensile Strength	Elongation	Hardness
	Grade	KSi(Mpa)	KSi(Mpa)	%	HRB
	TP304	≥515	205	≥35	≤90
	TP304L	≥483	170	≥35	≤90
	TP316	≥515	205	≥35	≤90
	TP316L	≥483	170	≥35	≤90

Main Application:
Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube 0
