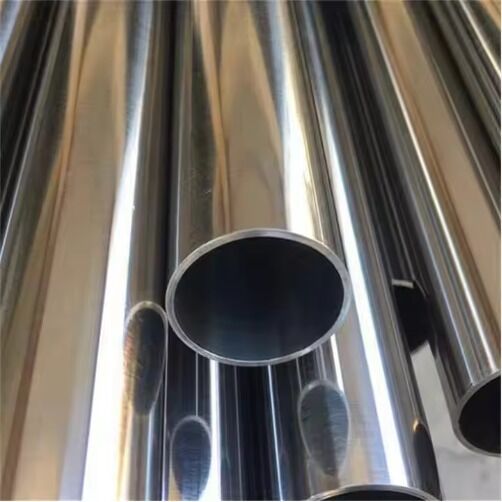

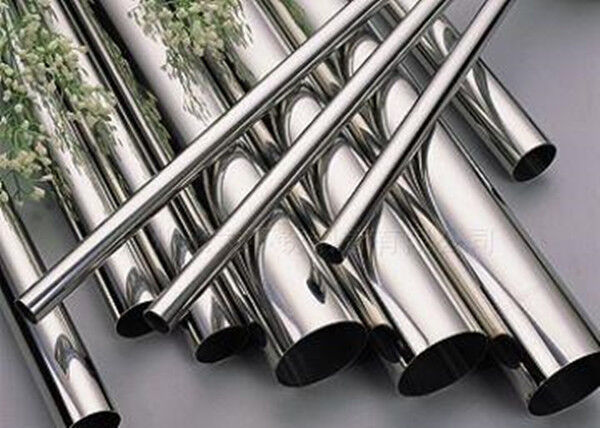

OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building

Name: OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: 304 304L 316L 310S 309S
Availability: InStock

Brand Name:	JUYE,SINOSTEEL
Model Number:	304 304L 316L 310S 309S
MOQ:	negotiation
Price:	negotiation
Delivery Time:	within a month
Payment Terms:	20% T/T at PO, 80% before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

MADE IN CHINA

Certification:

ISO

Description:

Stainless Steel Tube

Grade:

304 304L 316L 310S 309S

Outer Diameter:

8-108mm

Standard:

ASTM A554 JIS G3446

Thickness:

0.25-3.0mm

Length:

As Per Request

Application:

Mechanical Structure And Building Decoration

Shape:

Round Tube

Packaging Details:

Packed in wooden boxes

Supply Ability:

200T

Highlight:

seamless stainless steel tubing

stainless steel welded tube

Product Description

Main Specification:

Description:Stainless steel tube

Shape:Round

Grade:304 304L 316L 310S 309S

Outer Diameter:8-108mm, see here below the attached list.

Standard:ASTM A554 JIS G3446

Thickness:0.25-3.0mm

Payment terms: 20% T/T at PO, 80% before shipment

Delivey:within a month

Products Range

Outside Diameter

Thickness(mm)

Inch

0.25

0.30

0.35

0.40

0.50

0.60

0.70

0.80

0.90

1.00

1.20

1.50

2.00

2.50

3.00

●

9.5

3/8"

●

12.7

1/2“

●

15.9

5/8“

●

19.1

3/4“

●

20.5

●

22.2

7/8“

●

25.4

1“

●

28.6

1 18/“

●

31.8

1 1/4“

●

38.1

1 1/2“

●

40.5

●

41.3

1 5/8“

●

42.7

●

44.5

1 3/4“

●

50.8

2“

●

63.5

2 1/2“

●

76.2

3“

●

86.9

●

88.9

3 1/2“

●

101.6

4“

●

108

●

Calculation for Stainless steel pipe weight

Grade		Density(Kg/dm3)	Calculation
SUS304	SUS304L	7.93	W=0.02491 t(D-t)
TP304	TP304L	7.90	W=0.02482 t(D-t)
SUS316	SUS316L	8.00	W=0.02513 t(D-t)
TP316	TP316L	8.00	W=0.02513 t(D-t)

Mechanical Characteristics

Grade	Tensile Strength(N/mm2)	Hardness (HRB)	Yield Strength(N/mm2)	Elongation (%)	Ref.Standard
304	≤670	≤88	≥205	≥55%	ASTM A240/A 240M-2012
316L	≥485	≤88	≥170	≥55%	ASTM A240/A 240M-2012
304J1	≥450	≤90	≥155	≥40%	JIS G4304 -2012
321	≥520	≤90	≥205	≥55%	JIS G4304 -2012
S30100	≤750	≤93	≥205	≥55%	ASTM A240/A 240M-2012
S32205	≥655	≤32	≥450	≥25%	ASTM A240/A 240M-2012
309S	≥515	≤88	≥205	≥40%	ASTM A240/A 240M-2012
310S	≥515	≤88	≥205	≥40%	ASTM A240/A 240M-2012
