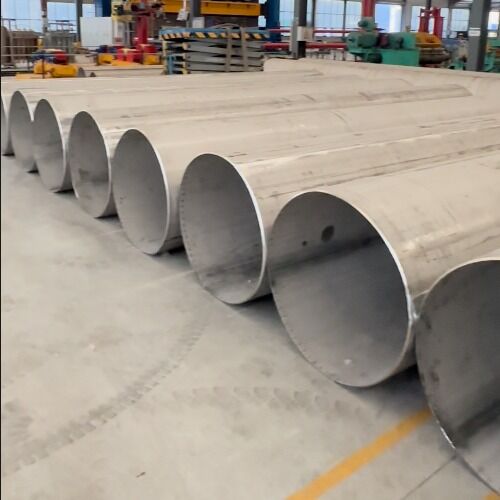

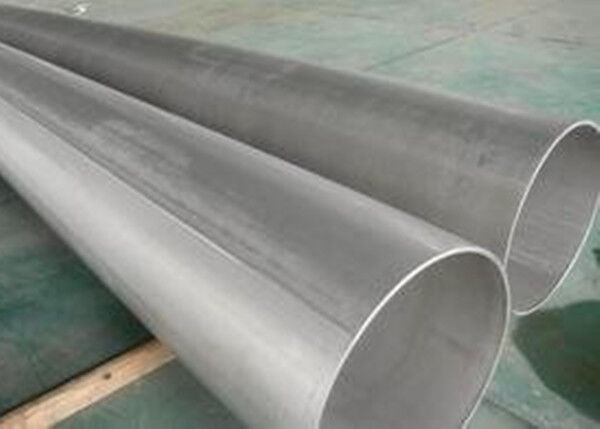

Large Diameter Stainless Steel Pipe Good Corrosion / Heat Resistance

Name: Large Diameter Stainless Steel Pipe Good Corrosion / Heat Resistance
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: TP304 TP304L TP316 TP316L
Availability: InStock

Brand Name:	SINOSTEEL
Model Number:	TP304 TP304L TP316 TP316L
MOQ:	negotiation
Price:	negotiation
Delivery Time:	4 weeks
Payment Terms:	20% T/T at PO, 80% before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Description:

Stainless Steel Welded Pipe

Grade:

TP304 TP304L TP316 TP316L

Nominal Diameter:

6mm-300mm

Outerside Diameter:

10.29mm-323.85mm

Wall Thickness:

SCH5S SCH10S SCH40S

Standard:

ASTM A312/A358/A778(B36.19M)

Length:

As Per Request

Application:

For Industrial Pipe

Packaging Details:

Robust package

Supply Ability:

100T

Highlight:

stainless steel welded tube

stainless steel tube stock

Product Description

TP304 TP304L TP316 TP316 stainless steel welded pipe SCH 5S SCH 10S SCH 40S

Products Range

Nominal Diameter		Outside Diameter	Norminal Wall Thickness(mm)
N.B	NPS	mm	SCH 5S	SCH 10S	SCH 40S
6	1/8	10.29		1.24	1.73
8	1/4	13.72	1.24	1.65	2.24
10	3/8	17.15	1.24	1.65	2.31
15	1/2	21.34	1.65	2.11	2.77
20	3/4	26.67	1.65	2.11	2.87
25	1	33.4	1.65	2.77	3.38
32	1 1/4	42.16	1.65	2.77	3.56
40	1 1/2	48.26	1.65	2.77	3.68
50	2	60.33	1.65	2.77	3.91
65	2 1/2	73.03	2.11	3.05	5.16
80	3	88.9	2.11	3.05	5.49
90	3 1/2	101.6	2.11	3.05	5.74
100	4	114.3	2.11	3.05	6.02
15	5	141.3	2.77	3.4	6.55
150	6	168.28	2.77	3.4	7.11
200	8	219.08	2.77	3.76	8.18
250	10	273.05	3.4	4.19	9.27
300	12	323.85	3.96	4.57	9.53

CHEMICAL COMPOSITION

STANDARD	GRADE	CHEMICAL COMPOSITION(%)
STANDARD	GRADE	C max	Si max	Mn max	P max	S max	Ni	Cr	Mo
ASTM	TP304	0.080	1.00	2.00	0.045	0.030	8.00-11.00	18.00-20.00	-
	TP304L	0.035	1.00	2.00	0.045	0.030	8.00-13.00	18.00-20.00	-
	TP316	0.080	1.00	2.00	0.045	0.030	10.00-14.00	16.00-18.00	2.00-3.00
	TP316L	0.035	1.00	2.00	0.045	0.030	10.00~14.00	16.00-18.00	2.00-3.00

ASTM	Grade	Yield Strength	Tensile Strength	Elongation	Hardness
	Grade	KSi(Mpa)	KSi(Mpa)	%	HRB
	TP304	≥515	205	≥35	≤90
	TP304L	≥483	170	≥35	≤90
	TP316	≥515	205	≥35	≤90
	TP316L	≥483	170	≥35	≤90
