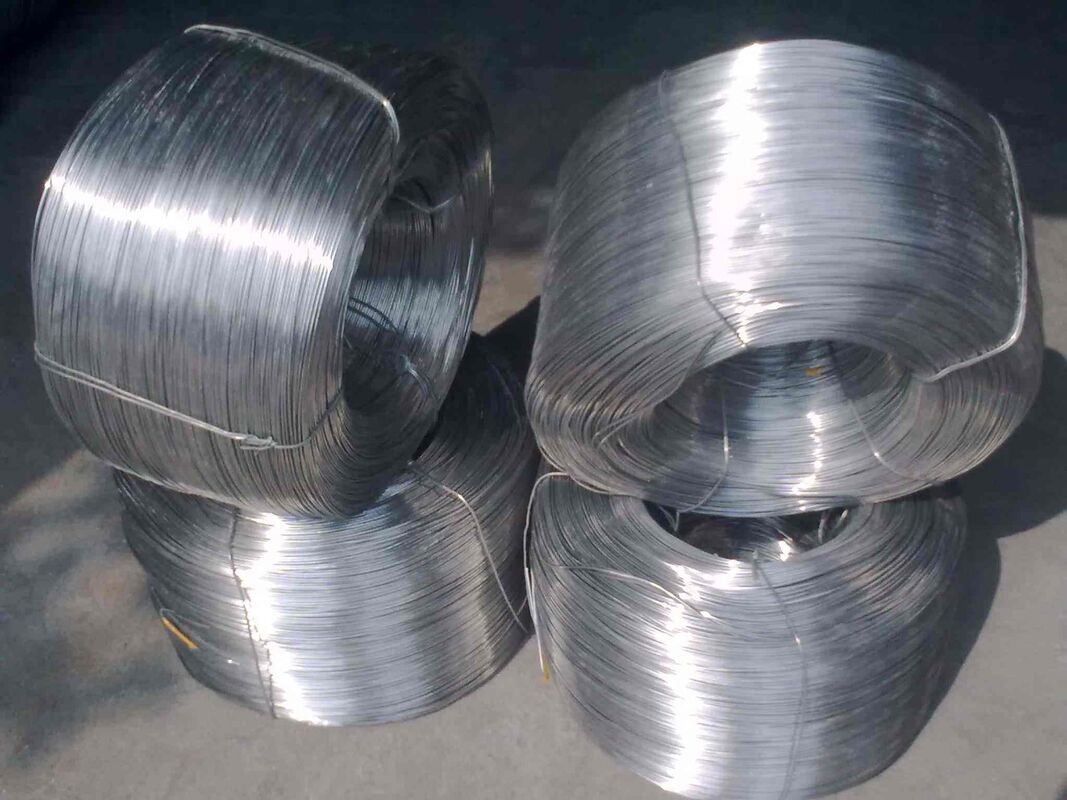

Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard
Grade: 302HQ SUSXM7 S30430 1.4567
Brand: Tsingshan
Kinds of stainless steel strip/ coil/ sheet/ foil/ tube/ rod/ flat /bar etc....
Cold rolled coil, Strip, Great width selection in coils, strips, Excellent dimensional accuracy.. Available in austenitic, ferritic iron, duplex and martensitic grades, with wide variety of special surfaces.. .
DIN/SUS/ASTM/JIS/GB 201/304/316/430/409 for industry use. NO1/2B/BA/2H
We supply wide range of width and thickness of stainless steel material, such as SUS200, 300 and 400 series and with different kinds of surface, hardness, and grades of which are largely used in the elevator, home appliances, kitchen utensils, medical instruments, environmental protection equipment, electrical parts and automobile industries, etc..
302HQ SUSXM7 S30430 1.4567 stainless steel wire rods for cold heading
Quick Detail:
Description:Stainless steel rod
Grade:302HQ SUSXM7 S30430 1.4567
Standard: JIS ASTM EN
Diameter: 5mm~38mm
Coil weight: 500kg~2500kg
Dimensional Tolerance: Grade A, Grade B or Grade C, as per customer option
Chemical Composition:
Grade:302HQ
C:≤0.03%
Si:≤1.0%
Mn:≤2.0%
P:≤0.045%
S:≤0.030%
Cr:17%-19.%
Ni:8.5%~10.5%
Cu:3%~4%
Ni:≤0.10%
Dimensional Tolerances for stainless steel wire rod
| Diameter (mm) | Grade A | |
| Tolerance(mm) | Ovality(mm) | |
| ≥5.0~10 | ±0.30 | ≤0.50 |
| >10~15 | ±0.40 | ≤0.60 |
| >15~25 | ±0.50 | ≤0.70 |
| >25~38 | ±0.60 | ≤0.96 |
| Diameter (mm) | Grade B | |
| Tolerance(mm) | Ovality(mm) | |
| ≥5.0~10 | ±0.25 | ≤040 |
| >10~15 | ±0.30 | ≤0.48 |
| >15~25 | ±0.35 | ≤0.56 |
| >25~38 | ±0.40 | ≤0.64 |
| Diameter (mm) | Grade C | |
| Tolerance(mm) | Ovality(mm) | |
| ≥5.0~10 | ±0.15 | ≤0.24 |
| >10~15 | ±0.20 | ≤0.32 |
| >15~25 | ±0.25 | ≤0.40 |
| >25~38 | ±0.30 | ≤0.48 |
Main Characteristics:
Element Cu is added based on grade 304, it’s used for cold heading, in possess with good cold heading performance, corrosion resistance and non-magnetic performance, it can be manufactured in a fast, efficient and economical way.
Application
it can be directly or after wire drawing,made into standard parts in different sizes such as :bolts, screws, nuts, nails, coiled nails, rivet shells, nails and so on.
