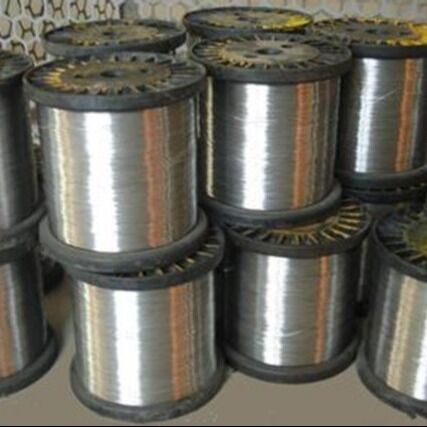

304H Stainless Steel Wire , Diameter Φ5mm - Φ38mm Soft Stainless Steel Wire

Name: 304H Stainless Steel Wire , Diameter Φ5mm - Φ38mm Soft Stainless Steel Wire
Brand: Ningbo Juye Metal Technology co.,ltd
SKU: 304H
Availability: InStock

Brand Name:	Tsingshan
Model Number:	304H
MOQ:	negotiation
Price:	negotiation
Delivery Time:	from 3-6 weeks
Payment Terms:	By T/T or by L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Made in CHINA

Certification:

ISO9001 ISO14001

Description:

Stainless Steel Rod

Grade:

Grade A

Diameter:

5mm~38mm

Application:

Metal Line And Cold Heading

Shipping Terms:

CIF FOB CFR

Coil Weight:

500kg~2500kg

Country Of Origin:

Made In China

Standard:

JIS G4303 JIS G4311 ASTM A959 EN10088-3

Packaging Details:

Standard packaging

Supply Ability:

5000T per month

Highlight:

alloy steel wire rod

steel wire coil

Product Description

304H stainless steel wire rods for hardware wire diameter Φ5mm~Φ38mm

Material

Grade	Standards
Grade	GB/T 20878-2007	JIS G4303:2005	ASTM A959-09	EN 10088-3:2005
304H	07Cr19Ni10	SUH304H	S30409	1.4948

Main Specification:

Description:Stainless steel rod

Grade:304H

Diameter: 5mm,5.5mm,6mm,5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,11mm,11.5mm,12mm,13mm,15mm,16mm,17mm,18mm,19mm,20mm,21mm,22mm,23mm,24mm,25mm,26mm,28mm,30mm,32mm,34mm,38mm

Coil weight: 500kg~2500kg

Dimensional Tolerance: Grade A,Grade B,Grade C

Length:Cut to customer needs

Dimensional Tolerances for stainless steel wire rod

Diameter (mm)	Tolerance(mm)
Diameter (mm)	Grade A	Grade B	Grade C
≥5.0~10	±0.30	±0.25	±0.15
>10~15	±0.40	±0.30	±0.20
>15~25	±0.50	±0.35	±0.25
>25~38	±0.60	±0.40	±0.30

OvalityTolerances for stainless steel wire rod

Diameter (mm)	Ovality(mm)
Diameter (mm)	Grade A	Grade B	Grade C
≥5.0~10	≤0.50	≤040	≤0.24
>10~15	≤0.60	≤0.48	≤0.32
>15~25	≤0.70	≤0.56	≤0.40
>25~38	≤0.96	≤0.64	≤0.48

Chemical Composition:

Grade:304H

C:0.04-0.10%

Si:≤1.0%

Mn:≤2.0%

P:≤0.045%

S:≤0.030%

Cr:18%-20%

Ni:8%~11%

Cu:0.50%

N:≤0.15%

Features and Application

Due to high strength, elastic stability, good fatigue resistance, good corrosion resistance in outdoor harsh environment, so it's widely used for making spring, steel strand and cable etc.

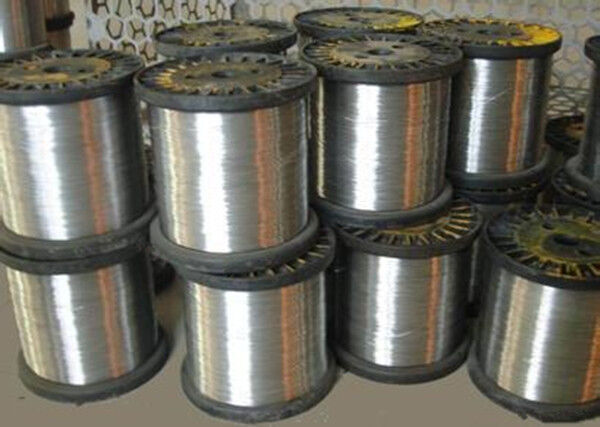

304H Stainless Steel Wire , Diameter Φ5mm - Φ38mm Soft Stainless Steel Wire 0
