Grade A Stainless Steel Wire Rod Excellent Formability Customized Length
Grade: Grade A
Diameter: 5mm~38mm

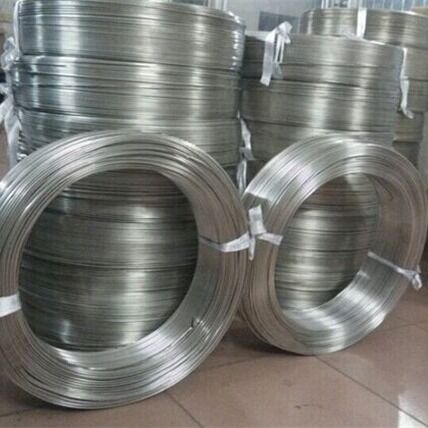

304L SUS304L S30403 1.4306 stainless steel wire rods for metal lines and cold heading
Main Specification:
Description:Stainless steel rod
Grade:304L SUS304L S30403 1.4306
Diameter: 5mm,5.5mm,6mm,5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,11mm,11.5mm,12mm,13mm,15mm,16mm,17mm,18mm,19mm,20mm,21mm,22mm,23mm,24mm,25mm,26mm,28mm,30mm,32mm,34mm,38mm
Coil weight: 500kg~2500kg
Dimensional Tolerance: Grade A
Dimensional Tolerances for stainless steel wire rod
| Diameter (mm) | Grade A | |
| Tolerance(mm) | Ovality(mm) | |
| ≥5.0~10 | ±0.30 | ≤0.50 |
| >10~15 | ±0.40 | ≤0.60 |
| >15~25 | ±0.50 | ≤0.70 |
| >25~38 | ±0.60 | ≤0.96 |
Chemical Composition:
| CHEMICAL COMPOSITION(%) | JIS | ASTM | EN | |
| C (max) | 0.03 | 0.03 | 0.03 | |
| Si (max) | 0.75 | 0.75 | 1.00 | |
| Mn (max) | 2.00 | 2.00 | 2.00 | |
| P (max) | 0.045 | 0.045 | 0.045 | |
| S (max) | 0.03 | 0.03 | 0.015 | |
| Mn (max) | 0.10 | 0.10 | 0.11 | |
| Ni | 9.00~13.00 | 8.00~12.00 | 8.00~12.00 | |
| Cr | 18.00~20.00 | 17.50~19.50 | 17.50~19.50 | |
Main Characteristics:
Same as grade 304, grade 304L has good formability, welding, corrosion resistance, and it's without magnetic after solution,but there's micro magnetic after cold processed. As grade 304L has low Carbon composition compared to grade 304, it has more good resistance to intergranular corrosion.
Application
usage: similar to grade 304, it's mainly used for foodware and kitchenware, chemical equipment, various head type,rod type, nail tip shape of the stainless steel screw,bolt, screw, nail rivet, tie line, hose connector and steel wire rope for oil and gas.
