Auto Control AISI 316 6X36 Stainless Steel Wire

Brand Name:	JUYE
Model Number:	316-6X36

Detail Information

Product Description

Detail Information

Place of Origin:

Maidland of China

Certification:

ISO

Description:

Stainless Steel Wire Rope

Material:

316/1.4401

Construction:

6x36

Application:

Auto Control System

Delivery:

Within A Month

Shipping Terms:

C&F FOB CIF

Highlight:

6X36 Stainless Steel Wire

AISI 316 Stainless Steel Wire

Product Description

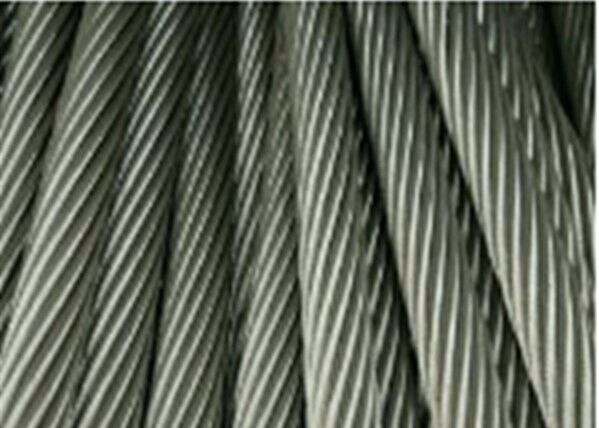

AISI 316 6X36 Stainless Steel Wire

Description:AISI 316 6X36 Stainless Steel Wire Cables for Auto Control systerm 6x36(AISI 316 6X36 Stainless Steel Wire Cables)316-6×36 Stainless steel wire ropes has features of good corrosion,heat and cold resistance in application of various fields

Auto Control AISI 316 6X36 Stainless Steel Wire 0

Chemical Composition(%)

ITEM	C	Ni	Cr	P	S	Si	Mn	Mo
	%	%	%	%	%	%	%	%
AISI316 (1.4401)	<0.08	10~14	16-18	<0.035	<0.03	<1.0	<2.0	2.0~3.0

Main Technical Data:

	Diameter (mm)	M.B.L (kN)	M.B.L (Kg)	Weight (Kg/100m)
	6	20.1	2,047	14.6
	8	35.7	3,641	26
	10	55.9	5,700	40.9
	12	80.5	8,210	58.9
	13	94.4	9,630	71.6
	14	110.0	11,200	80.2
	15	116.6	11,894	92
6 X 36 WS+IWRC	16	143.1	14,600	105
6 X 36 WS+IWRC	17	149.7	15,279	118
	18	181.3	18,500	133
	19	187.0	19,085	148
	20	224.0	22,800	164
	22	271.0	27,600	198
	24	322.0	32,800	236
	26	354.0	36,100	276
	28	410.0	41,800	321
	32	471.0	48,000	419

Main Application:

Our production of various types of industrial stainless steel wire rope, yacht cables , automotive control cables, deckrailing cables and other products was sold overseas.
NOTE:

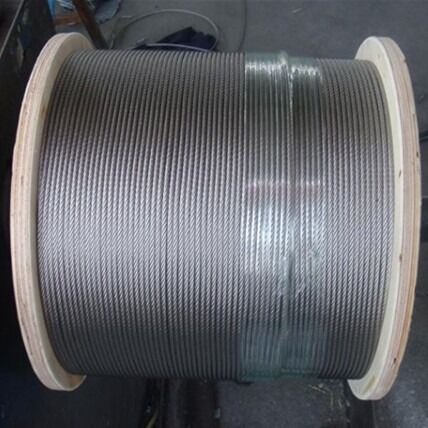

CAN BE SUPPLIED IN A SPOOL OF THE LENGTH SHOWN OR CAN BE
CUT TO YOUR REQUEST (IN METER).
* = WEIGHT PER 100M IN KGS, WITHOUT REEL.
Typical Applications
Leisure Marine Industry
Chemical installations - Chlorine plants etc
General lifting in off-shore applications
General lifting and tethering in leisure
marine applications
General lifting purposes
