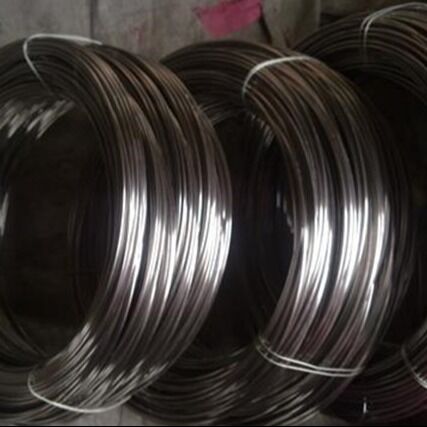

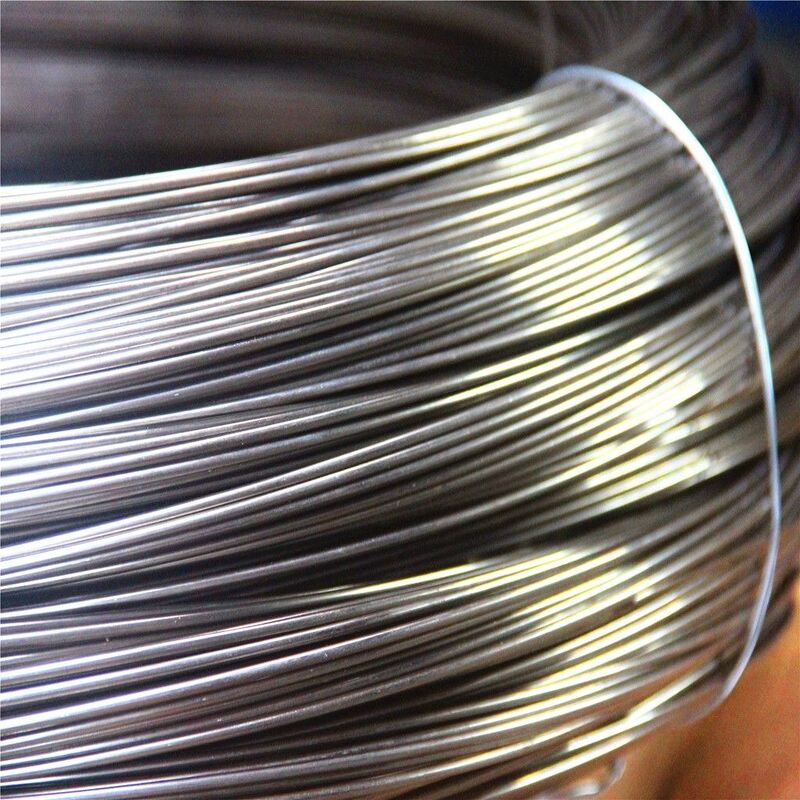

8.0mm Nickel Chromium Cr20Ni80 Heating Alloy Wire

Detail Information

Place of Origin:

China Juye Metal

Certification:

ISO

Features:

Long Life Time, High Temperature Anti Corrossion, Durable

Material:

Nickel Chromium Heating Alloy Wire

Alloy Grade:

Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30

Diameter:

0.05-8.0mm

Bundle Weight:

5kg-50kg

Packaging Details:

STANDARD EXPORT WATER PROOF PAKAGE WITH PERFECT PROTECTION

Supply Ability:

200 METRIC TONS PER MONTH

Highlight:

Nickel Chromium heating alloy wire

Product Description

Nickel Chromium heating alloy wire: NiCr Alloy wire

Detail data as belows:

Alloy Grade	Main Chemical Compositiom				Max.Application Temperature(℃)	Resistivity(µΩ.m)	Density (g/cm3)	Melting Point(℃)	Tensile Strength(N/mm2)	Elongation (%)	Life Time (h/℃)	Magnetic
Alloy Grade	Cr%	Al%	Ni%	Fe%	Max.Application Temperature(℃)	Resistivity(µΩ.m)	Density (g/cm3)	Melting Point(℃)	Tensile Strength(N/mm2)	Elongation (%)	Life Time (h/℃)	Magnetic
0Cr21Al4	21	4		Rest	1100	1.23±0.06	7.35	1500	750	≥12	≥80/1250	yes
0Cr25Al5	25	5		Rest	1250	1.42±0.07	7.10	1500	750	≥12	≥80/1300	yes
0Cr21Al6Nb	21	6		Rest	1350	1.43±0.07	7.10	1510	750	≥12	≥50/1350	yes
0Cr23Al6	23	6		Rest	1350	1.44±0.05	7.10	1510	750	≥16	≥60/1350	yes
0Cr27Al7Mo2	27	7		Rest	1400	1.53±0.07	7.10	1520	750	≥10	≥50/1350	yes
Cr20Ni80	20		Rest		1200	1.09±0.05	8.40	1400	750	≥20	≥80/1200	no
Cr30Ni70	30		Rest		1250	1.18±0.05	8.10	1380	750	≥20	≥50/1250	no
Cr15Ni60	15		55	Rest	1150	1.12±0.05	8.20	1390	750	≥20	≥80/1150	no
Cr20Ni35	20		35	Rest	1100	1.04±0.05	7.90	1390	750	≥20	≥80/1150	no
Cr20Ni30	20		30	Rest	1100	1.04±0.05	7.90	1390	750	≥20	≥80/1100	no
